The SCULTURA ENDURANCE is the perfect choice for more leisure-focused cyclists who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Wide tyres offer plenty of comfort, even on the most pothole-littered country lanes, while a longer head tube provides a more relaxed riding position. An instant hit with the international cycling press and besides being given a 'comfort' award by RennRad, it also managed to get a long list of compliments like 'excellent comfort', ‘confidence inspiring', 'lively feel' and 'enjoyable' by reference cycling media such as Gran Fondo, Cyclingnews, Cyclingtips and Road.cc. Compared to its namesake, the SCULTURA, the ENDURANCE has a more comfort-orientated geometry, plenty of tyre clearance and seamless integration of the latest standards. It sits between the road-biased SCULTURA on one side and the gravel/adventure SILEX on the other, while the SCULTURA ENDURANCE GR lineup offers gravel-racing focused options with off-road ready tyres and flared handlebars.
- Lightweight 6066 triple butted and hydroformed aluminium frame with comfort orientated geometry for confidence inspiring handling
- Full carbon tapered fork
- Shimano 105 12-speed groupset
- MERIDA EXPERT SL II wheelset
- MERIDA carbon seat post
- WIRE PORT cable integration
FRAME SCULTURA ENDURANCE LITE
material: aluminum
700x35C max./ 700x32C (with fender) max.
wheelsize
100x12/ 142x12mm axle standard
BB86 bottom bracket standard
FORK SCULTURA ENDURANCE CF3 Disc
material: carbon
700x35C max. wheelsize
BRAKE FRONT Shimano 105
Hydraulic Disc
BRAKE REAR Shimano 105
Hydraulic Disc
HEADSET Acros ICR MERIDA
external neck w/diecast splitring
HANDLEBAR MERIDA EXPERT SL II
material: aluminium
380mm (4S-3XS-XXS-XS-S), 400mm (M-L), 420mm (XL)
HANDLEBAR STEM MERIDA TEAM CC III
material: aluminium
-6° stem angle
80mm (4S/3S), 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)
DERAILLEUR (R) Shimano 105
GS
SEAT POST MERIDA COMP CC
27.2mm diameter
0mm setback
material: carbon
SADDLE MERIDA COMP SL
V-mount
28% recycled material
CRANK Shimano 105 R7100
50-34 teeth
160 mm-4S/3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
FREEWHEEL Shimano 105 R7101
11-34 teeth
12 speed
RIM MERIDA EXPERT SL II
23mm inner width
25mm height
material: aluminium
hookless
Tubeless ready (tubeless tape and valves not included)
TYRE FRONT Maxxis Detonator
700x32C
fold
TYRE REAR Maxxis Detonator
700x32C
fold
HUB FRONT Shimano HB-TC500
100x12mm width front hub
28 spoke holes
Centerlock
HUB REAR Shimano HB-TC500-HL
142x12mm width rear hub
28 spoke holes
Centerlock
AXLE REAR MERIDA EXPERT SL
including removable lever
6/4mm allen key
ROTOR FRONT Shimano RT54
160mm
ROTOR REAR Shimano RT54
160mm

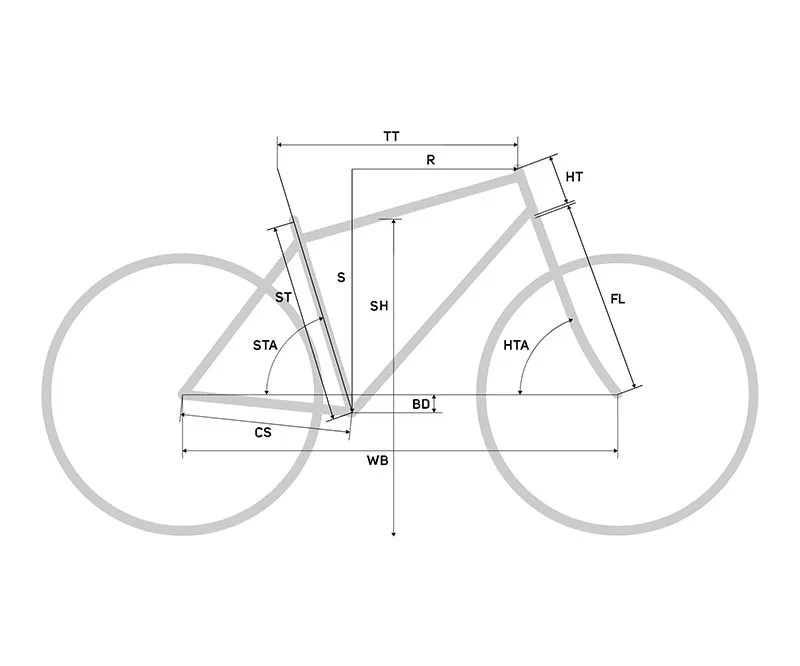

FRAME SIZE | XXS | XS | S | M | L |
TIRE SIZES | 28" | 28" | 28" | 28" | 28" |
ST SEAT TUBES MM | 440 | 470 | 490 | 510 | 530 |
TT TOP TUBES MM | 515 | 524 | 538 | 553 | 568 |
CS CHAIN STAYS MM | 418 | 418 | 418 | 418 | 418 |
HTA HEAD TUBE ANGLES DEG | 70.5 | 71 | 72 | 73 | 73 |
STA SEAT TUBE ANGLE DEG | 74 | 74 | 74 | 73.5 | 73.5 |
BD BOTTOM BRACKET DROPS MM | 66 | 66 | 66 | 66 | 66 |
HT HEAD TUBE LENGTHS MM | 140 | 152 | 161 | 177 | 197 |
FL FORK LENGTHS MM | 380 | 380 | 380 | 380 | 380 |
R REACHS MM | 360 | 366 | 376 | 380 | 389 |
S STACKS MM | 539 | 552 | 565 | 584 | 603 |
WB WHEEL BASE MM | 992 | 997 | 1001 | 1001 | 1017 |
SH STAND OVER HEIGHT MM | 742 | 767 | 785 | 803 | 823 |

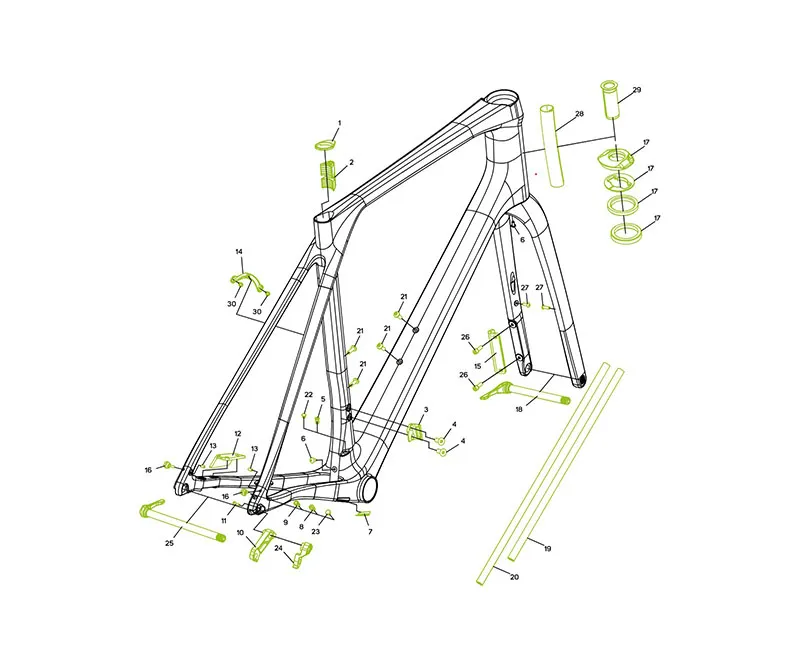

NUMBER | ITEM NUMBER | NAME | INFO | PIECES | TORQUE NM |
1 | A2247000023 | COVER | for seatpost clamp | 1 | |
2 | A2247000120 | CLAMP | for seatpost | 1 | 4~5 |
3 | A2136000054 | MOUNT | for FD | 1 | |
4 | A2300000010 | SCREW | M5x0.8 L12mm | 2 | 4~5 |
5 | A2143000095 | CABLE PLUG | for Di2 | 1 | |
6 | A2298000319 | SCREW | M4x0.7 L9mm | 2 | 3~4 |
7 | A2322000045 | PROTECTOR | for chain stay | 1 | |
8 | A2143000121 | CABLE PLUG | for Di2 | 1 | |
9 | A2143000082 | CABLE PLUG | for mechanical | 1 | |
10 | A2311000103 | RD HANGER | DH-067 for SHIMANO direct mount | 1 | |
11 | A2300000129 | SCREW | M3x0.5 L10mm | 1 | 2~3 |
12 | A2164000039 | DISC COOLER | rear, for FM160/FM180 | 1 | |
13 | A2298000356 | SCREW | M4x0.7 L8mm | 2 | 3~4 |
14 | A2030000002 | MOUNT | for fender | 1 | |
15 | A2164000038 | DISC COOLER | front, for FM160/FM180 | 1 | |
16 | A2164000089 | MOUNT | for fender | 2 | |
17 | A2192000190 | HEADSET | MERIDA-8151 (MH-P16/MH-P16) | 1 | |
18 | A2002000120 | THRU AXLE | EXPERT TR; L=120mm M12x1.5 TL=12mm | 1 | |
19 | A2029000036 | TUBE | foam; ID6mm L 400mm | 1 | |
20 | A2029000037 | TUBE | foam; ID6mm L 450mm | 1 | |
21 | A2298000059 | SCREW | M5x0.8 L15mm | 4 | 3~4 |
22 | A2143000130 | BLIND PLUG | 1 | ||
23 | A2143000131 | BLIND PLUG | 1 | ||
24 | A2311000104 | RD HANGER | DH-068 for ROAD-RD | 1 | |
25 | A2002000119 | THRU AXLE | EXPERT TR; L=162.5mm M12x1.5 TL=12mm | 1 | |
26 | A2298000265 | SCREW | M5x0.8 L16mm | 2 | 6~8 |
27 | A2298000361 | SCREW | M4x0.7 L12mm | 2 | 3~4 |
28 | A2029000057 | TUBE | woven; L70mm for size XXS | 1 | |
28 | A2029000058 | TUBE | woven; L90mm for size XS/S | 1 | |
28 | A2029000059 | TUBE | woven; L105mm for size M | 1 |
FLEX STAY
By using a specific tube shape and careful design of the seat- and chainstay of our hardtail bikes, we enable them to work like flat leaf springs, absorbing surface bumps and reducing vibrations. This makes the rear end more comfortable, can improve power delivery and has a positive impact on rider fatigue. In particular, on performance bikes that are ridden over long distances and uneven surfaces, this can have a great effect on the overall riding performance and enjoyment.
X-TAPER HEADTUBE
Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.
INTERNAL CABLE ROUTING
On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.
DI2 READY
Shimano's Di2 electronic shifting system offers fast, smooth and reliable shifting. In particular, in the road world, it has proven itself as the primary choice when top performance is at the top of the agenda. With that in mind, we have a broad selection of performance road frames that are Di2 READY and can accommodate the electrical cable, battery and other little tweaks that the system requires.
NANO MATRIX CARBON
NANO MATRIX CARBON is a special kind of carbon fibre where we add extremely tiny, nano-scale particles to the resin that binds the individual carbon fibres together. These then work on a molecular level to protect them from damage. It’s so effective that it can actually increase the finished carbon fibre’s impact resistance by up to 40%, allowing us to build stronger and lighter composite frames that result in a faster and tougher bike.
AWS ANTI WRINKLE SYSTEM
This is a method we use to manufacture our carbon fibre frames. First, the carbon fibre that makes up the frame is laid around special formers. We then use a bladder to compress the layers against the outside of the frame mould, giving a smooth and wrinkle-free internal finish, removing any voids in between the layers of carbon that can cause potential weak points, resulting in a stronger, lighter frame.
DISC COOLER
Used on our carbon fibre road and gravel bikes, DISC COOLER is a finned piece of forged aluminium that sits between the brake calliper and frame. The aluminium piece helps to draw heat from the braking system and radiates it away quickly. It reduces the temperatures by up to 35% and helps to keep your brakes working at their best for improved control and performance on long descents and under heavy braking.
INTERNAL CLAMP
When every second counts, the smallest of details can make the difference between winning and losing, so we look at every aspect of our frames to make them as sleek as possible. By using a seat post clamping mechanism that secures the post with a wedge inside the frame itself, we minimise the turbulence and potential drag while keeping post height adjustment simple, giving a frame that is more aerodynamic and also better looking.
