The fifth generation of our lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from our test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after 'Best Value Race Bike of the Year 2024' award. The SCULTURA demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, our classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.
- Super-light CF5 carbon frame (approx. 822 g - in size M) with race-proven (identical to REACTO) geometry
- Shimano Dura-Ace 12-speed Di2 groupset
- Power meter
- MERIDA TEAM SL 1P one-piece cockpit
- Vision Metron 45 SL wheelset with Continental 5000S TR 28 mm tyres
- MERIDA S-FLEX carbon seat post and DISC COOLER technology
FRAME NINETY-SIX CF4 lll
100 mm suspension travel material: carbon 29x2.35" max. wheelsize 148x12 mm axle standard BSA bottom bracket standard
FORK Fox 34 Float SC Performance Elite
Air 120 mm suspension travel Tapered 3 Pos lockout 44 mm fork offset 29x2.4" max. wheelsize
SHOCK FOX DPS Performance Elite
remote lockout
BRAKE FRONT Shimona XT
4 piston
BRAKE REAR Shimano XT M8110
2 piston flat mount
HANDSET MERIDA 8151
HANDLEBAR MERIDA EXPERT CC
material: aluminium 760mm width flat
HANDLEABAR STEM MERIDA Expert CC ll
material: aluminium 31.8mm diameter -8° stem angle 60 mm
DERAILLEUR(R) MShimano XT M8100 Shadow+
SGS
SHIFTER FRONT MJD-FL Dropper Post Lever
SHIFTER REAR Shimano XT
Multi Release
SEAT POST MERIDA EXPERT TR
30.9mm diameter 0mm setback S: 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
SADDLE MERIDA EXPERT SL
V-mount incl.MERIDA minitool
CHAINWHEEL Raceface Next
32 teeth
CRANK MRaceface Next R
170 mm-S,175 mm-M up
FREEWHEEL Shimano XT
10-51 yeeth 12 speed
BOTTOM BRACKET BB,BSA73mm-O30mm,Ext.Seal
WHEELSET Reynolds TR309/289XC
110x15mm width front hub 148x12mm width rear hub 30/28mm inner width Centerlock Shimano 12 Speed material: carbon Tubeless ready (tubeless tape and valves included) Lifetime warranty
TYRE FRONT Maxxis Minion DHR ll
29x2.3" fold TR EXO 3C MaxxTerra
TYRE REAR Maxxis Minion DHR ll
29x2.3" fold TR EXO 3C MaxxTerra
TYRE FRONT Maxxis Minion DHR ll
180mm
ROTOR REAR Shimamo RT-MY800
160mm

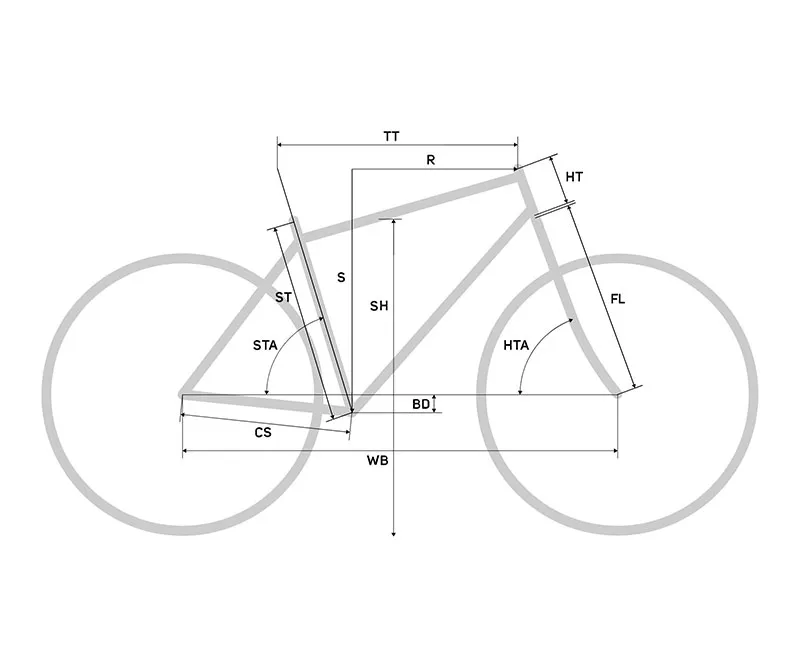

FRAME SIZE | S | M |
TIRE SIZES | 29" | 29" |
ST SEAT TUBES MM | 581 | 601 |
TT TOP TUBES MM | 572 | 596 |
CS CHAIN STAYS MM | 435 | 435 |
HTA HEAD TUBE ANGLES DEG | 67 | 67 |
STA SEAT TUBE ANGLE DEG | 75 | 75 |
BD BOTTOM BRACKET DROPS MM | 36 | 36 |
HT HEAD TUBE LENGTHS MM | 95 | 95 |
FL FORK LENGTHS MM | 530 | 530 |
R REACHS MM | 420 | 440 |
S STACKS MM | 595 | 595 |
WB WHEEL BASE MM | 1136 | 1156 |
SH STAND OVER HEIGHT MM | 740 | 741 |

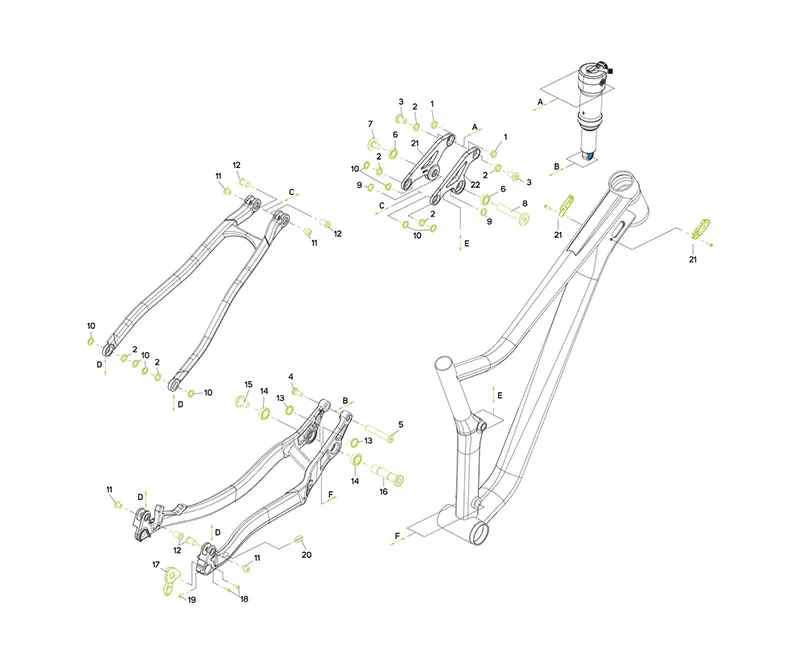

NUMBER | ITEM NUMBER | NAME | INFO | PIECES | TORQUE NM |
1 | A2191000227 | HEAD SET | Acros AIX-585 | 1 | |
2 | A2136000017 | MOUNT | for bottle cage | 1 | |
3 | A2298000185 | SCREW | M5x0.8 L10mm | 4 | 3~5 |
4 | A2298000145 | SCREW | M5x0.8L25mm | 1 | 3~5 |
5 | A2300000477 | BOLT | M10x1 OD15/17mm L65mm | 1 | |
6 | A2300000476 | M10x1 L15mm | M10x1 L15mm | 2 | |
7 | A2221000040 | BEARING | 172607V-2RS OD26mm ID17mm W7mm | 1 | 14 |
8 | A2221000043 | BEARING | 3802V-2RS OD24mm ID15mm W7mm | 1 | |
9 | A2294000102 | WASHER | OD21mm ID17.1mm H3mm | 2 | |
10 | A2294000016 | WASHER | OD19mm ID15.1mm H3mm | 8 | |
11 | A2300000577 | SCREW | M6x1 L13,5mm | 4 | 11 |
12 | A2300000471/p> | BOLT | M6x1 OD10mm L39mm | 4 | |
13 | A2300000472 | WASHER | M6x1 OD10mm L34mm | 2 | |
14 | A2300000473 | BOLT/p> | M6x1 OD10mm L55mm | 2 | |
15 | A2181000005 | WASHER | OD15mm ID10.1mm H27mm | 1 | 12 |
16 | A2294000085 | WASHER | OD15.5mm ID10.1mm H2mm | 1 | |
17 | A2300000578 | SCREW | M6x1 L13mm | 1 | |
18 | A2221000035 | BEARING | 6801V-2RS OD21mm ID12mm W5mm | 2 | 4 |
19 | A2294000105 | WASHER | OD17mm ID12.1mm H2mm | 1 | 5 |
20 | A2258000225 | CABLE GUIDE | for RD and rear brake | 1 | |
21 | SMART ENTRY |
HFS - HYDRO FORMING SYSTEM
To get the most out of an aluminium tube in terms of shape or varying wall thickness, we apply various forms of manipulation. The most complex but also the most effective is hydroforming, where an aluminium tube is inserted into a negative mould, and a hot emulsion of water and oil is forced through at pressure. The end result is a perfectly shaped aluminium tube that enables us to create beautifully crafted and lightweight aluminium frames.
X-TAPER HEADTUBE
Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.
SMOOTH WELDING
On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.
INTERNAL CABLE ROUTING
On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.
DOWN TUBE EXIT
DOWN TUBE EXIT is a feature seen on some of our frames with internally routed cables. By slightly overlapping the downtube where it connects to the bottom bracket, it leaves a small space that allows cables to exit easily. This means they are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.
SMART ENTRY
Many of our frames offer internal cable routing, where the gear and brake cables are run through the frame for maximum protection and a clean look. Some internally run cables can rattle when riding over uneven surfaces, but our SMART ENTRY system prevents this from happening. Cables, housings and brake hoses are clamped under tension to prevent noisy cable movement. All inlets are completely interchangeable to deal with any kind of cable or wire.
DI2 READY
Shimano's Di2 electronic shifting system offers fast, smooth and reliable shifting. In particular, in the road world, it has proven itself as the primary choice when top performance is at the top of the agenda. With that in mind, we have a broad selection of performance road frames that are Di2 READY and can accommodate the electrical cable, battery and other little tweaks that the system requires.
SUPERLITE 16 ALUMINIUM
Our latest grade of aluminium (6016) enables super thin wall thicknesses whilst delivering amazing strength, ideal for demanding off-road riding and racing.
